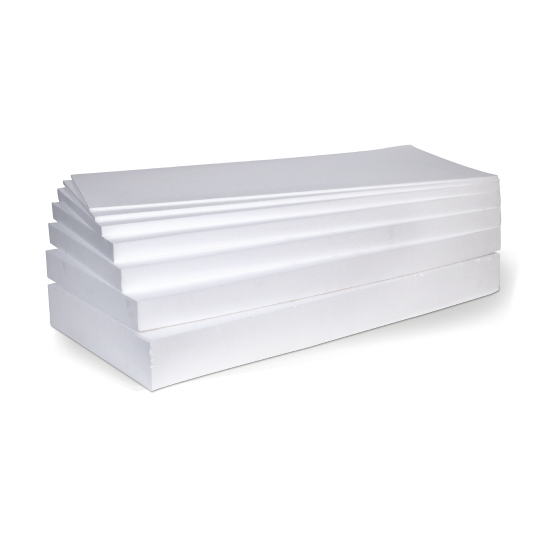

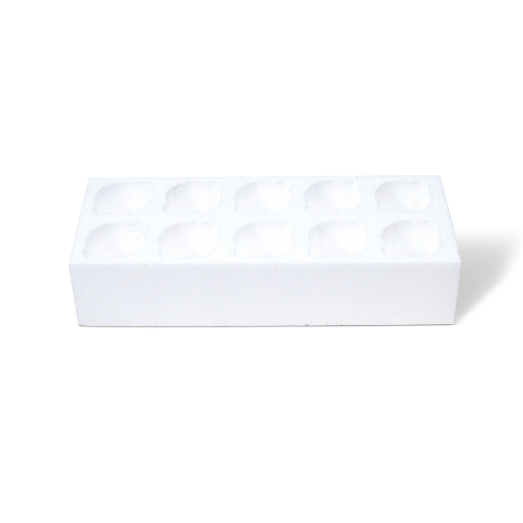

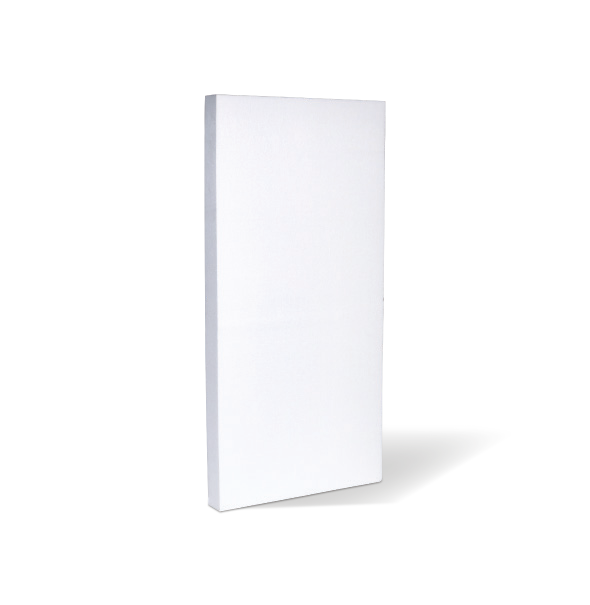

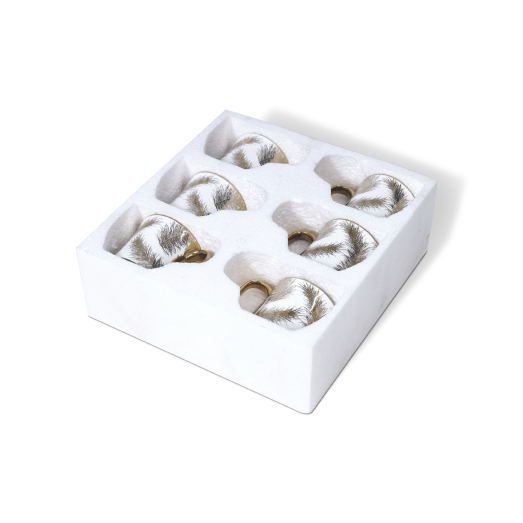

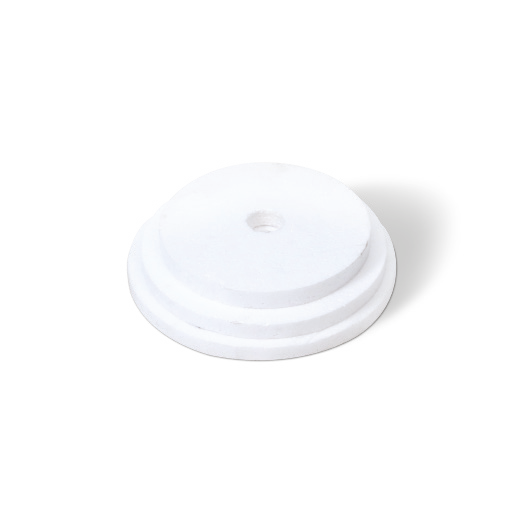

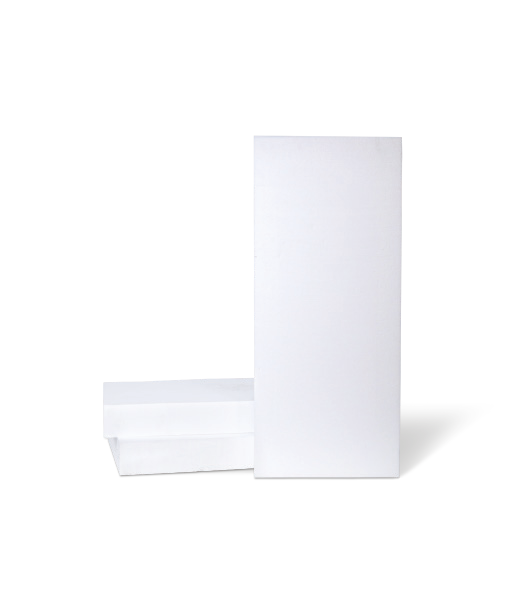

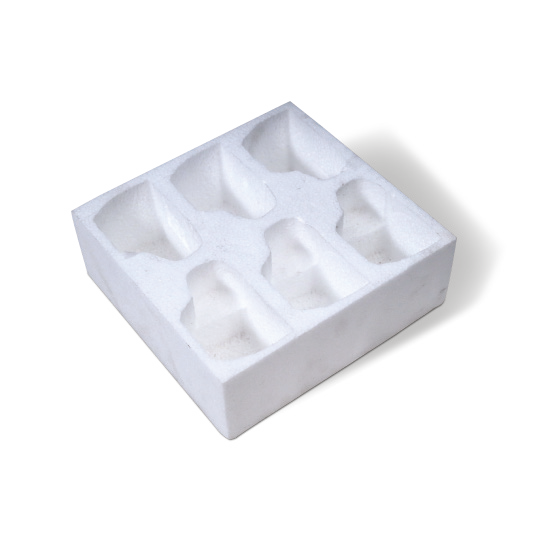

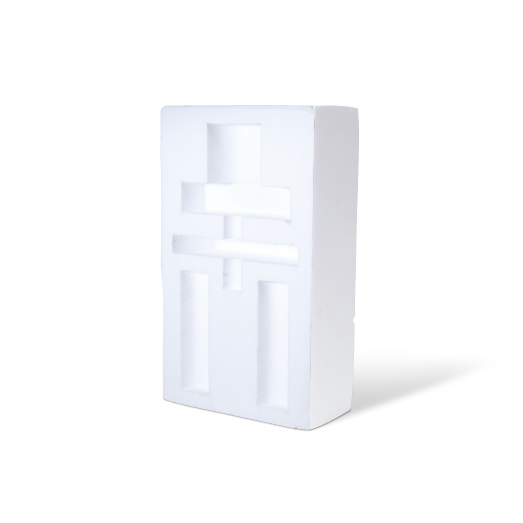

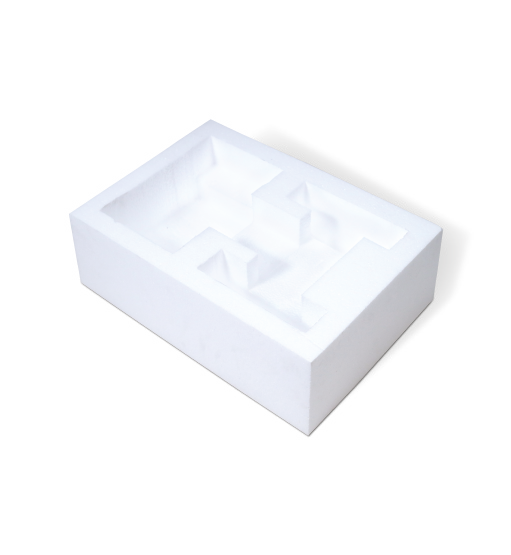

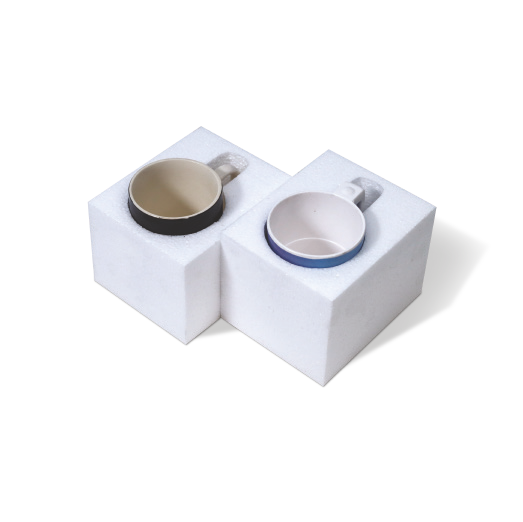

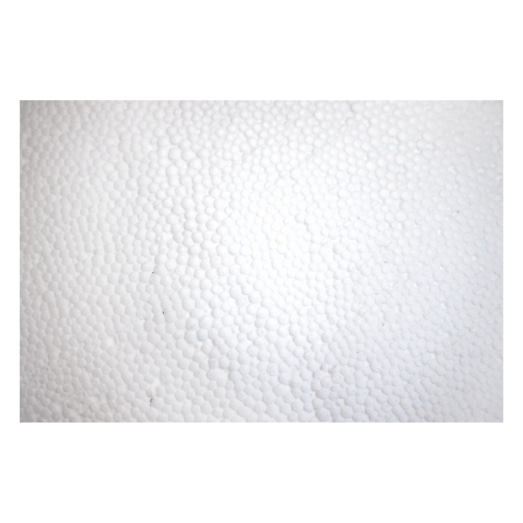

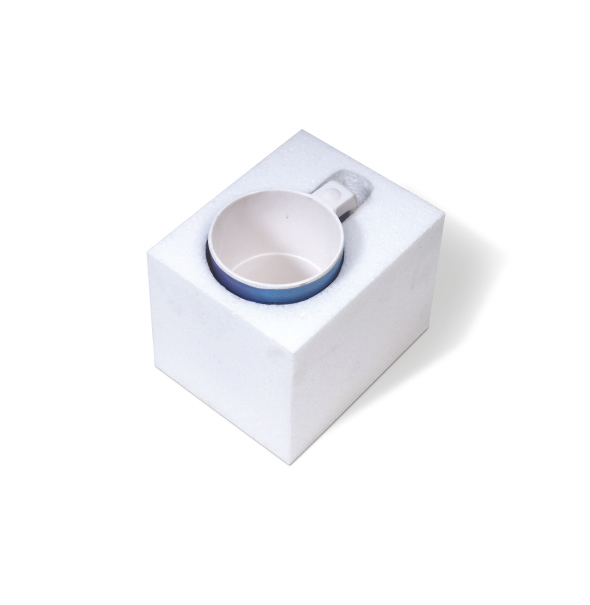

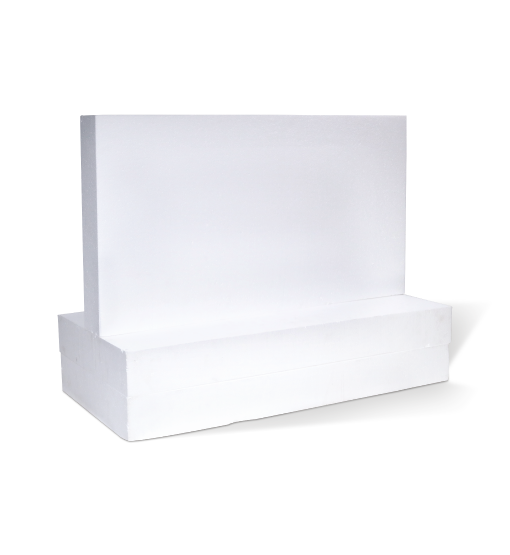

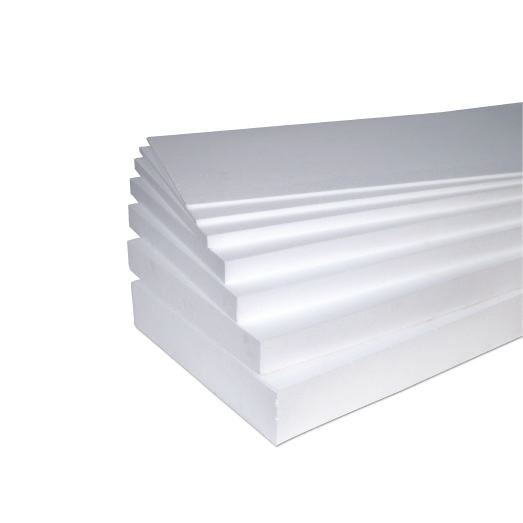

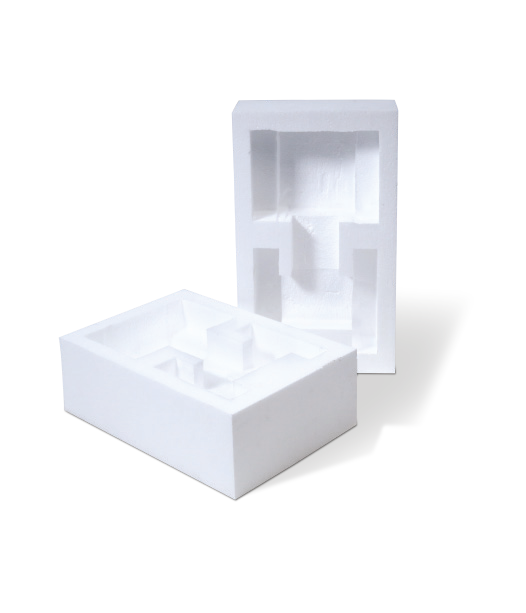

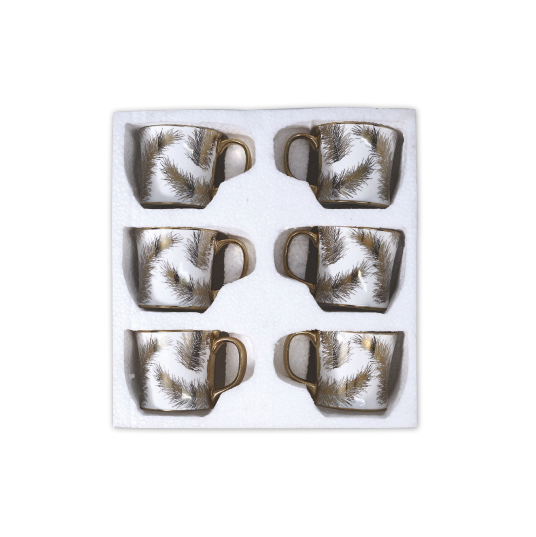

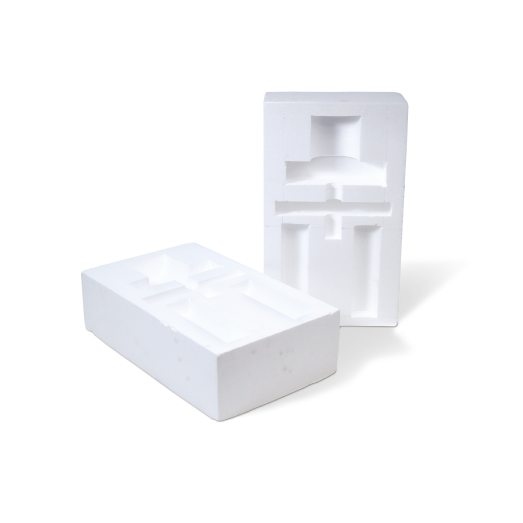

Manufactured using robustly driven technical excellence and high grade raw materials, Thermocol products are highly acclaimed in various industries. Available in customizable lengthes and sizes, these packaging sheets infuse utmost protection and offer resistance from all damages. Extremely light-weight and hassle free, thermocol products assure sustainability and ease.
Technical Specification
| Physical Property | Unit | L | SL | S | M | H | VH | Test Method |
|---|---|---|---|---|---|---|---|---|
| Nominal Density (Kg/m³) | 11 | 13.5 | 16 | 19 | 24 | 28 | N/a | |
| Compressive stress at 10% deformation (min ) | KPa | 50 | 70 | 85 | 105 | 135 | 165 | AS:2498.3 |
| Cross-breaking strength (min) | kPa | 95 | 135 | 165 | 200 | 260 | 320 | AS2498.4 |
| Rate of water vapour transmission (max) measured parallel to rise at 23°C | µg/m²s | 710 | 630 | 580 | 520 | 460 | 400 | AS2498.5 |
| Dimensional stability of length, width, thickness (max) at 70°C, dry condition 7 days | % | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | AS2498.6 |
| Thermal resistance (min) at a mean temperature of 25°C (50mm sample) | m²K/W | 1 | 1.13 | 1.17 | 1.2 | 1.25 | 1.28 | AS2498.5 OR AS2498.6 |
